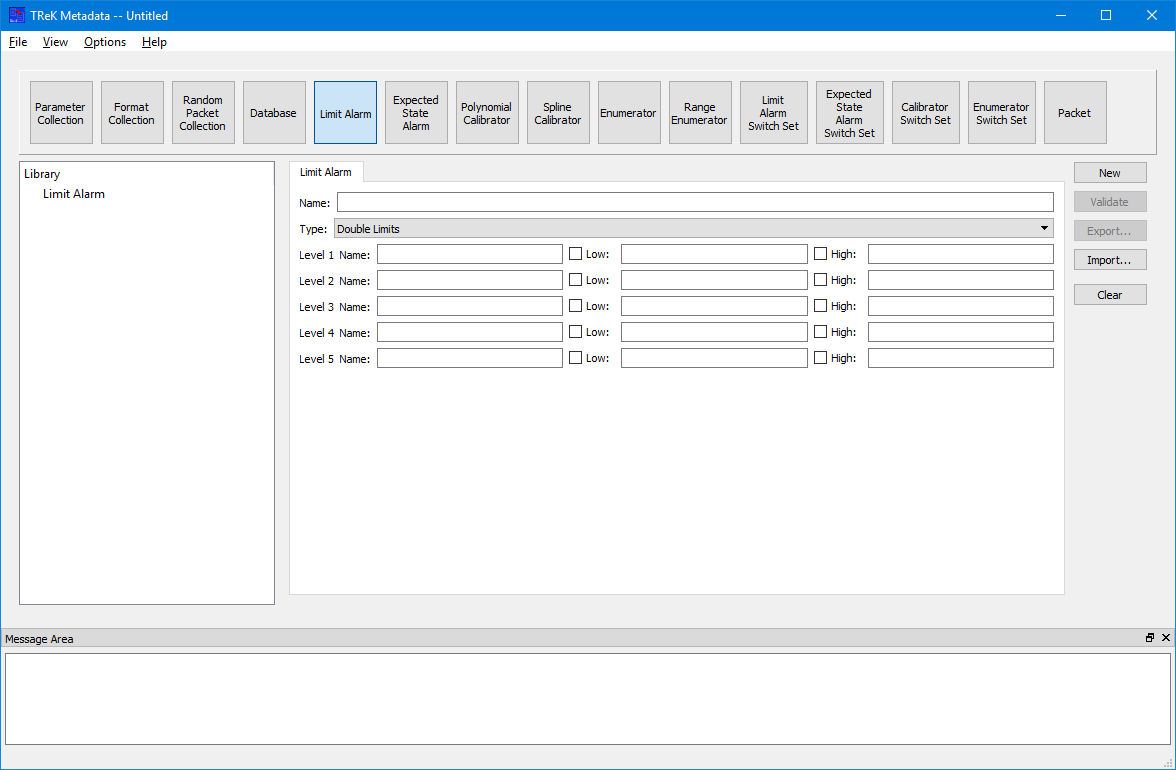

The Limit Alarm configuration provides the capability to work with a Limit Alarm. Figure 13 shows the Main Window in the Limit Alarm configuration.
On the left hand side of the Main Window you will see the Library Area. It is configured to provide access to existing Limit Alarms in the trek_workspace. When you create a Limit Alarm and export it to the trek_workspace, it will be added to the Limit Alarm list. The Library Area only displays items stored in the trek_workspace. If you need to work on an item outside of the trek_workspace, you will need to import the item. In the middle of the Main Window you will see the Work Area showing the Limit Alarm Tab. This is where you will define the details of the Limit Alarm. On the right hand side of the Main Window you will see a set of buttons that provide various capabilities applicable to the Limit Alarm you are working on (e.g., Validate to validate the Limit Alarm or Export to export the Limit Alarm).
The Work Area provides the following information:
Name
The name field is used to display the name of the Limit Alarm.
Type
The type menu is used to select the type of Limit Alarm.
Limit Alarm Levels
Fields are provided to set details for each Limit Alarm Level as shown in Figure 14. The Low checkbox is used to indicate if the Low for that level is in use. The High checkbox is used to indicate if the High for that level is in use.
The following functions are available when working with a Limit Alarm:
New
New provides the capability to clear the existing Limit Alarm information.
Validate
Validate provides the capability to validate the Limit Alarm information.
Export
Export provides the capability to save the Limit Alarm to a file.
Import
Import provides the capability to load a Limit Alarm from a file. When a Limit Alarm is imported the information is displayed on the Limit Alarm tab. To store any modifications back to the file, the Limit Alarm must be exported.
Clear
Clear provides the capability to clear the Work Area.
